Lovsun Solar Panel Rotterdam Warehouse 550W 560W 600W Monocrystalline Panel PV Module
Product Category：
key word：
550 w solar panel
550watt solar panel
550w solar panel
Inquiry
Feature & Functions
Product Description
| Model Number | LRS182-540W | LRS182-545W | LRS182-550W | LRS182-555W | LRS182-560W |
| Maximum Power (Pmax/W) | 540w | 545w | 550w | 555w | 560w |
| Open Circuit Voltage (Voc/V) | 49.44 | 49.54 | 49.64 | 49.74 | 49.84 |
| Short Circuit Current (Isc/A) | 13.86 | 13.93 | 14 | 14.07 | 14.14 |
| Voltage at Maximum Power (Vmp/V) | 40.72 | 40.81 | 40.9 | 40.99 | 41.08 |
| Current at Maximum Power (Imp/A) | 13.27 | 13.36 | 13.45 | 13.54 | 13.64 |
| Module Efficiency(%) | 20.90 | 21.09 | 21.29 | 21.48 | 21.67 |
| Temperature Coefficient of Isc | +0.04%/°C | ||||
| Temperature Coefficient of Voc | -0.25%/°C | ||||
| Temperature Coefficient of Pmax | -0.34%/°C | ||||

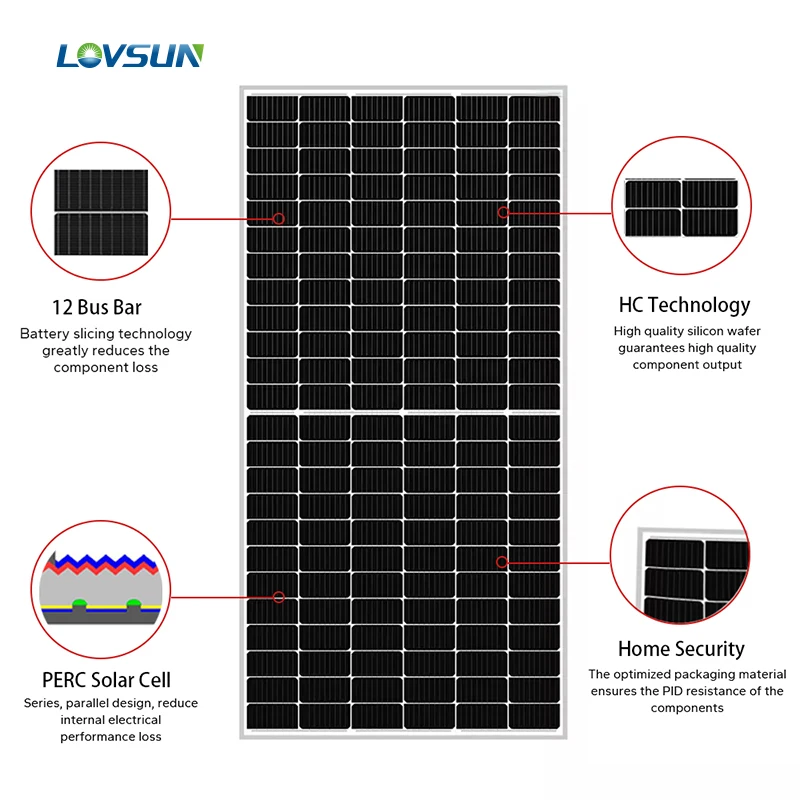

Details Images
Monitoring&Controlling System
Certificate

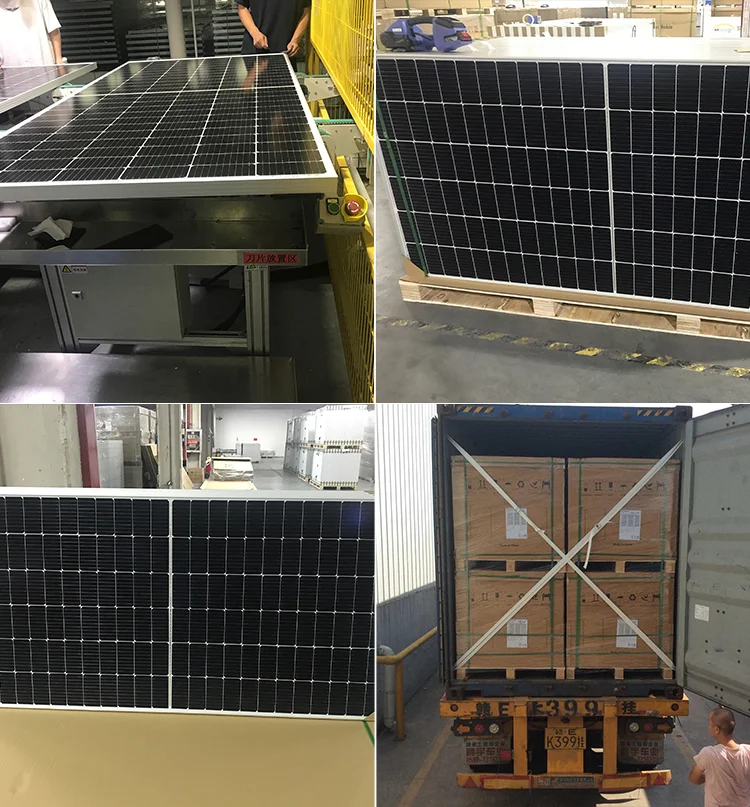

Pack&shipping

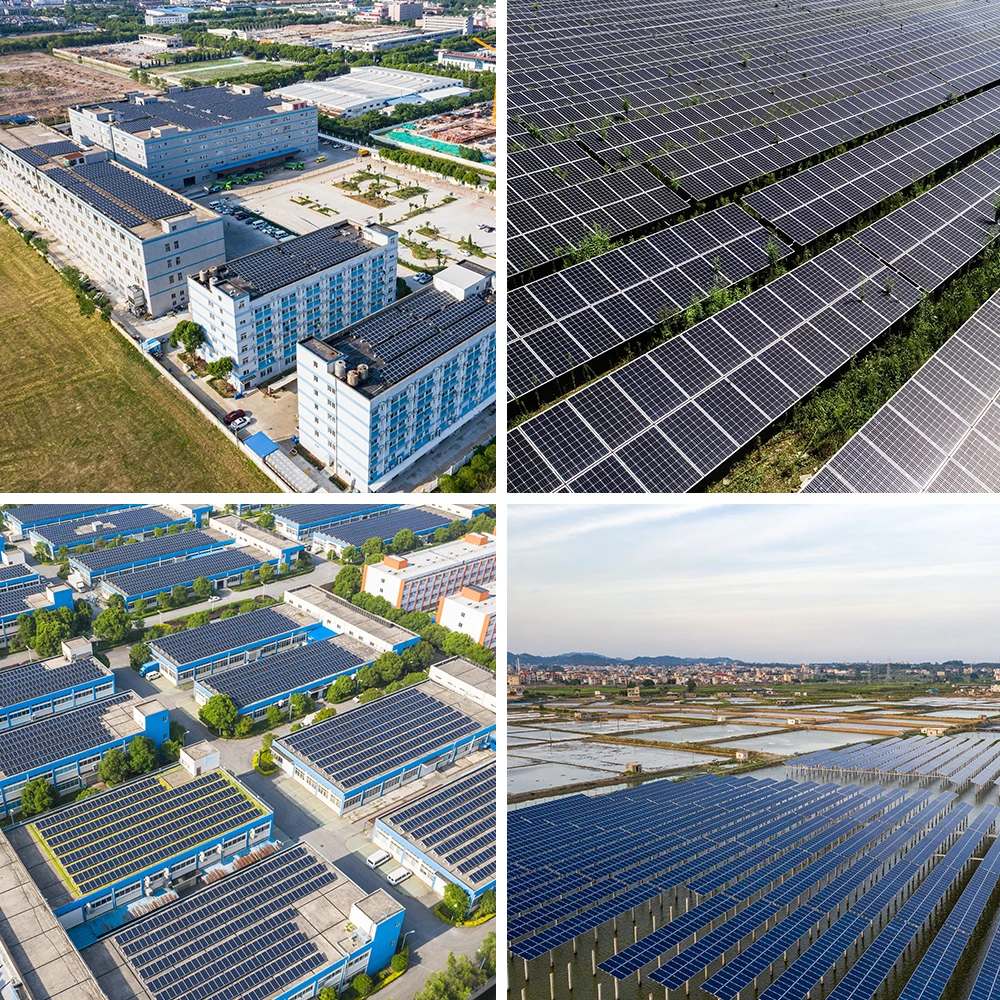

Residential&Commercial Projects
